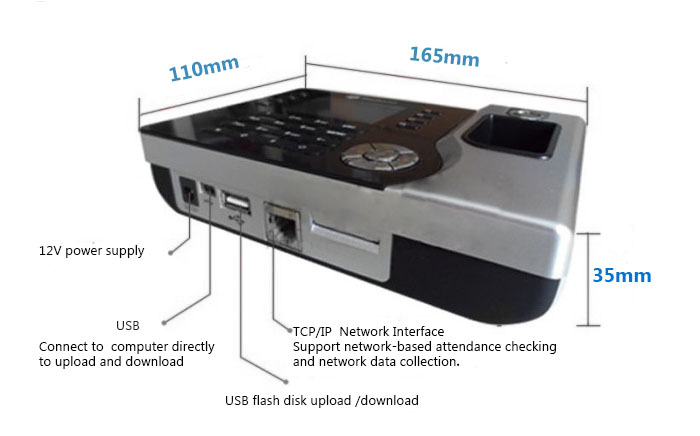

structure and size

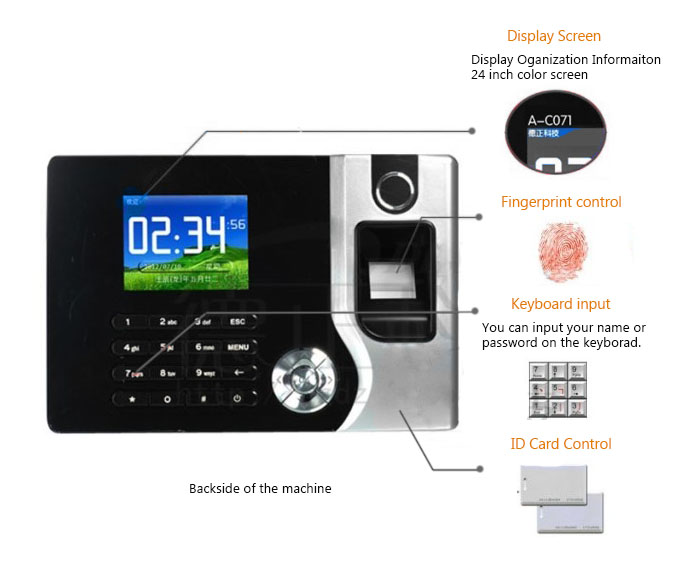

Fingerprint Access Control Function

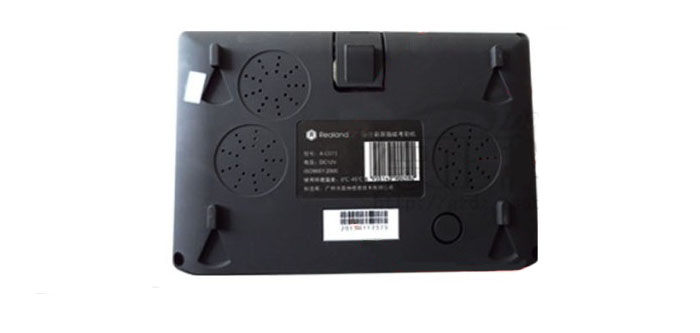

Back side
Fingerprint Access Control TECHNICAL SPECIFICATION
| Proximity Card |
125Khz,EM4100 or other Compatible Contactless ID Card |
| USB Flash Drive Up/Download |
Available |
| Record Query |
Available(People can query their own attendance record after authentication) |
| Rotational Angle | Total Rotational Angle |
| Identification Time | ≤1s |
| FRR | ≤0.1% |
| FRA | ≤0.0001% |
| Operating Mode | Off-line/Online |
| Authentication Mode | 1:1,1:N |
| Language | Chinese,English |
| Voice Prompt |
Available |
| Bell | Built-in Timing Bell |
| Self Test |
Available |
| Power Management |
Auto Sleep Time,Auto Power Off Time |
| Power Adapter |
DC 12V/1A |
| Operating Environment |
Operating Temp:-10℃~+60℃，Humidity（RH）:20%~80% |
| Size of the Terminal | 165(L)*110(W)*35(H) mm |

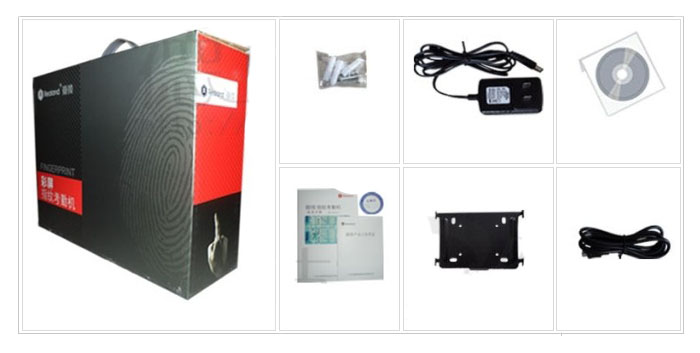

Fingerprint Access Control Accessories
| 12V power supply | 1 |
| wall fixed support | 1 |
| screw | 1 |
| light disk | 1 |
| Certificate of Approval | 1 |
| USB Cable | 1 |
